10.5KV 11KV 20KV High Voltage 2000KW 3000KW Resistive Load Bank Containerized Type for Generator Test

Forced air cooling, by Axial Fan; horizontal inlet air, vertical exhaust cooling. Airducts install at top of the load bank, used for rainproof for air outlet
Availability:
Inquire

  • MCLB

MECCA-High Volatge 10.5KV-20KV Containerized  Loadbank Resistive/inductive Load Bank for Generator Test/Power Grid/Data center


  • Cooling system: Forced air cooling, by Axial Fan; horizontal inlet air, vertical exhaust cooling

  • Rated voltage and frequency: 3phase, 4 wire, 50HZ/60HZ (As required）

  • Load bank protections: Over voltage, Short Ciruit and Over load, Over heating protection, cooling funs failure protection with alarm

  • Communication：RS485, RS232, USB Converter

  • Container type,with a ladder, air inlet and outlet with mesh enclosure and protection door

  • Protection Grade：IP56

  • Optional: Airducts install at top of the load bank, used for rainproof for air outlet


  • container loadbank


    1300KW load bank


    1mw loadbank


RESISTIVE LOAD BANK                                                                                                50/60HZ  100-3000KW
ModelRated PowerPower FactorLoad VoltageDimensionWeight
(L*W*H)mm(kg)
MCLB-100100kW1.03PH 380-480V
(380V,400V,415V,440V,460V,480V
OPTIONAL)		540*292*60435
MCLB-200200kW750*511*74695
MCLB-200200kW748*517*72685
MCLB-250250kW1440*1300*1070550
MCLB-500500kW1100*900*1200385
MCLB-500500kW1800*1300*1070700
MCLB-600600kW1800*1420*1190800
MCLB-10001000kW1800 *1300*19181300
MCLB-12501250kW2660*1600*21002000
MCLB-15001500kW2400*1700*18001700
MCLB-20002000kW4000*2100*21004500
MCLB-25002500kW6058*2438*25917500
MCLB-30003000kW6058*2438*25918000




RESISTIVE INDUCTIVE LOAD BANK                                                                    50/60HZ  40KW-4800KW
ModelInstalled CapacityPower FactorLoad VoltageDimensionWeight
W*D*H(mm)(kg)
MCLB-40R: 40kW0.8/1.03PH 380-480V
(380V,400V,415V,440V,460V,480V
OPTIONAL)		1200*900*1350150
L: 30kVAr
MCLB-100R: 100kW1860*1100*1450375
L: 75kVAr
MCLB-800R: 800kWR:2440*1400*16803000
L: 600kVArL:2440*1400*1680
MCLB-1200R: 1200kW6058*2438*25914500
L: 900kVAr
MCLB-1600R: 1600kW6058*2438*25916000
L: 1200kVAr
MCLB-2000R: 2000kW6058*2438*25917500
L: 1500kVAr
MCLB-2400R: 2400kW6058*2438*25919000
L: 1800kVAr
MCLB-2800R: 2800kW6058*2438*259110500
L: 2100kVAr
MCLB-3500R: 3500kW6058*2438*259113125
L: 2625kVAr
MCLB-4000R: 4000kW12192*2438*259115000
L: 3000kVAr
MCLB-4800R: 4800kW12192*2438*259118000
L: 3600kVAr
HIGH VOLTAGE LOAD BANK                                                                           50/60HZ  2000KW-6000KW
ModelInstalled CapacityPower FactorLoad VoltageDimensionWeight(kg)
W*D*H(mm)
MCLB-2000kW2000kW13 phase 3.3-11KV 50/60Hz6058*2438*25916000
MCLB-3000kW3000kW6058*2438*25917000
MCLB-5000kW5000kW12192*2438*2591140000
MCLB-6000kW6000kW12192*2438*2591160000


Previous:
Next:
load bank resistive load bank 3000KW load bank 2000KW load bank 20KV load bank 11KV load bank containerized load bank Resistive Inductive load bank load bank for generator test 10.5KV load bank
Inquiry

Related Products

100kw-1000kw Dummy Load Bank for Generator Test
100kw-1000kw Dummy Load Bank for Generator Test
200KW Load Bank Resistive Type for Generator Test AC 380V 400V
200KW Load Bank Resistive Type for Generator Test AC 380V 400V
AC380V 400V 500KW Loadbank Resistive pf1.0 Moveable Load Bank for Generator Test
AC380V 400V 500KW Loadbank Resistive pf1.0 Moveable Load Bank for Generator Test
AC 300KW 400KW 500KW Loadbank Resistive Type Moveable Load Bank for Generator
AC 300KW 400KW 500KW Loadbank Resistive Type Moveable Load Bank for Generator
AC 700KW 800KW 1000KW Loadbank Resistive Type Load Bank Outdoor Use
AC 700KW 800KW 1000KW Loadbank Resistive Type Load Bank Outdoor Use
AC380V 400V 1000KW Loadbank Resistive Type Dummy Load Bank for Generator Test
AC380V 400V 1000KW Loadbank Resistive Type Dummy Load Bank for Generator Test
AC 1500KW Loadbank Resistive Type Load Bank for Generator Test
AC 1500KW Loadbank Resistive Type Load Bank for Generator Test
Containerized 1MW 1000KW 1300KW Loadbank Resistive Type Load Bank for Power Grid
Containerized 1MW 1000KW 1300KW Loadbank Resistive Type Load Bank for Power Grid

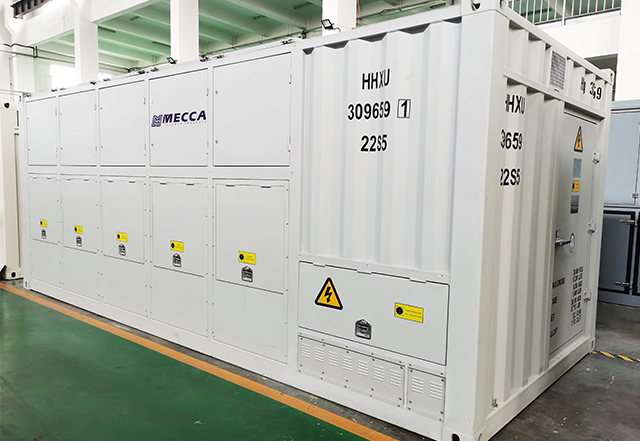

1MVA 2MVA 2.5MVA 3MVA 3750KVA Resistive Inductive Load Bank Containerized Type for Outdoor Use
