3.3KV-11KV High Voltage 2000KW 3000KW 5000KW 6000KW Resistive Load Bank Containerized Type for Generator Test

Forced air cooling, by Axial Fan; horizontal inlet air, vertical exhaust cooling. Airducts install at top of the load bank, used for rainproof for air outlet
Availability:
Inquire

  • MCLB

MECCA-High Volatge 3.3KV-20KV Containerized  Loadbank Resistive/inductive Load Bank for Generator Test/Power Grid/Data center


  • Cooling system: Forced air cooling, by Axial Fan; horizontal inlet air, vertical exhaust cooling

  • Rated voltage and frequency: 3phase, 4 wire, 50HZ/60HZ (As required）

  • Load bank protections: Over voltage, Short Ciruit and Over load, Over heating protection, cooling funs failure protection with alarm

  • Communication：RS485, RS232, USB Converter

  • Container type,with a ladder, air inlet and outlet with mesh enclosure and protection door

  • Protection Grade：IP56

  • Optional: Airducts install at top of the load bank, used for rainproof for air outlet


  • container loadbank


    1300KW load bank

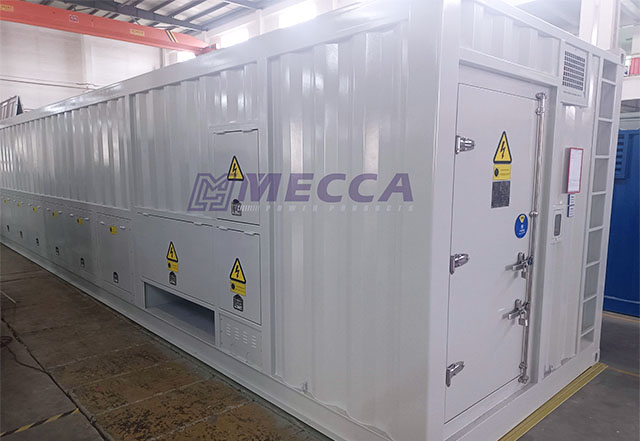

    6MW load bank


RESISTIVE LOAD BANK                                                                                                50/60HZ  100-3000KW
ModelRated PowerPower FactorLoad VoltageDimensionWeight
(L*W*H)mm(kg)
MCLB-100100kW1.03PH 380-480V
(380V,400V,415V,440V,460V,480V
OPTIONAL)		540*292*60435
MCLB-200200kW750*511*74695
MCLB-200200kW748*517*72685
MCLB-250250kW1440*1300*1070550
MCLB-500500kW1100*900*1200385
MCLB-500500kW1800*1300*1070700
MCLB-600600kW1800*1420*1190800
MCLB-10001000kW1800 *1300*19181300
MCLB-12501250kW2660*1600*21002000
MCLB-15001500kW2400*1700*18001700
MCLB-20002000kW4000*2100*21004500
MCLB-25002500kW6058*2438*25917500
MCLB-30003000kW6058*2438*25918000




RESISTIVE INDUCTIVE LOAD BANK                                                                    50/60HZ  40KW-4800KW
ModelInstalled CapacityPower FactorLoad VoltageDimensionWeight
W*D*H(mm)(kg)
MCLB-40R: 40kW0.8/1.03PH 380-480V
(380V,400V,415V,440V,460V,480V
OPTIONAL)		1200*900*1350150
L: 30kVAr
MCLB-100R: 100kW1860*1100*1450375
L: 75kVAr
MCLB-800R: 800kWR:2440*1400*16803000
L: 600kVArL:2440*1400*1680
MCLB-1200R: 1200kW6058*2438*25914500
L: 900kVAr
MCLB-1600R: 1600kW6058*2438*25916000
L: 1200kVAr
MCLB-2000R: 2000kW6058*2438*25917500
L: 1500kVAr
MCLB-2400R: 2400kW6058*2438*25919000
L: 1800kVAr
MCLB-2800R: 2800kW6058*2438*259110500
L: 2100kVAr
MCLB-3500R: 3500kW6058*2438*259113125
L: 2625kVAr
MCLB-4000R: 4000kW12192*2438*259115000
L: 3000kVAr
MCLB-4800R: 4800kW12192*2438*259118000
L: 3600kVAr
HIGH VOLTAGE LOAD BANK                                                                           50/60HZ  2000KW-6000KW
ModelInstalled CapacityPower FactorLoad VoltageDimensionWeight(kg)
W*D*H(mm)
MCLB-2000kW2000kW13 phase 3.3-11KV 50/60Hz6058*2438*25916000
MCLB-3000kW3000kW6058*2438*25917000
MCLB-5000kW5000kW12192*2438*2591140000
MCLB-6000kW6000kW12192*2438*2591160000
